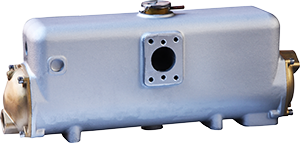

Water Cooler
|
Model
|
Rated power Kw(HP) | Cool Area (m²) | Sea Water Dia. (mm) | Fresh Water Dia. (mm) | Overall Dimesion LXWXH (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| AH300 | 35(48) | 0.66 | 5/4" | Φ 50 | 480 X 147 X 254 | 16 |
| (WH100) | ||||||
| CH300 | 44-76 | 1.6 | Φ 38 | Φ 60 | 596 X 179 X 293 | 27.5 |
| (60-108) | ||||||
| CH400 | 130-176 | 2.0 | Φ 38 | Φ 60 | 716 X 179 X 306 | 32 |
| (180-240) | ||||||
| CH500 | 440(590) | 2.9 | Φ 50 | Φ100 | 820 X 208 X 400 | 36 |
| (KH300) | ||||||
| CH600 | 588(788) | 3.69 | Φ 50 | Φ100 | 1000 X 208 X 400 | 38 |
| (KH400) | ||||||
| CH700 | 176-200 | 2.42 | Φ 38 | Φ60 | 851 X 179 X331 | 40 |
| (240-300) | ||||||
| CH900 | 588 (788) | 3.9 | Φ 50 | Φ80 | 1050 X 223 X 406 | 68 |
| PH300 | 588-822 | 7.79 | Φ 76 | Φ120 | 1100 X 290 X 580 | 145 |
| (788-1182) | ||||||
| PH400 | 1102-1320 | 9.33 | Φ 76 | Φ150 | 1180 X 290 X 580 |
155 |
| (1476-1769) |
Marine Gearbox
 |
 |
 |
 |
 |
 |
| MA 142A | MB170 | 120C | 135A | 300 | D300A |
Marine Exhaust Manifold
Stangtip

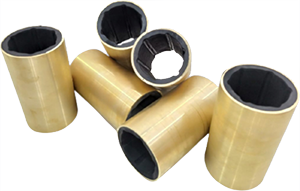

Cutless Bearing
