6BD1 Isuzu

DIESEL ENGINE SPECIFICATION

Description 6BD1

Engine Characteristics

Valve train Configuration

Type of Aspiration

Type of Injection

No. of cylinders

Displacement (lit)

Compression ration

Firing Order

Overall Dimensions

Length (mm)

Width (mm)

Height (mm)

Dry Weight (kg)

4 Cycle. Water Cooled. Vertical In-Line.

Over Head Valve

Naturally Aspirated

Direct Injection

6

5.785L

17.5:1

1-5-3-6-2-4

-

1220

640

1020

480

Industrial Power

Gross (SAE J1995)

Max. Rated Output (kW/min-1)

Max. Torque (N.m)

Net Permformance (ISO 30466)

Max.Rated Output (kW/min-1)

Max. Torque (N.m)

-

-

103/3000 rpm

402 N.m/1600~1800 rpm

-

103/3000

372 N.m /2000 rpm, 342Nm/2000rpm. 343Nm/18000rpm

APLIKASI Diesel Engine 6BD1.

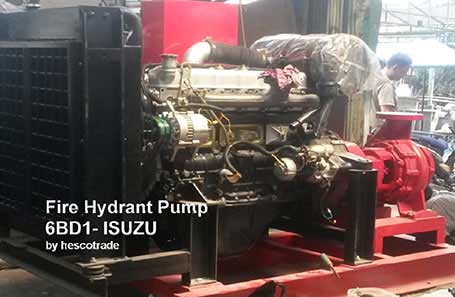

a. Diesel Fire Hydrant Pump
b. Diesel Irrigation Pump
c. Genset
d. Penggerak peralatan lain nya
